Emergency Eye Wash, Pedestal Mounted 304 Stainless Steel Eye Washer with Dust Cover, Double Spray Nozzles Face Shower Units, for Lab Chemical Plant

Durable Thickened 304 Stainless Steel Easy to operate, fast opening and closing, reliable sealing. The special three-way ball valve as the chief water valve is controlled by a treadle through a swing lever. Multi-layer filter screen is built in the nozzle to filter impurities in the water and make the water flow into a foamy water column, effectively preventing impurities or causing secondary damage. This Wall Mounted Eye Washer is suitable for use in areas where the ambient temperature is above 0℃ Pay attention to the antifreeze insulation of the pipeline when using it in the environment of 0℃ and below. Product Details Product name: Vertical eye wash Main body material: SS304（optional Q235 or SS316L)+ ABS Coating Function: Eye washing Working environment temperature: 0~50℃ Applicable medium:Normal temperature drinking water or water that meets hygienic standards Nominal pressure: 1.0Mpa Working pressure: 0.2Mpa-0.4Mpa Eye Wash flow: ≥11.4L/min Installation and commissioning *The installation location should be within 15 meters of the accident-prone place, and the flushing place can be reached within 10 seconds of running speed. *Assemble the components as shown in the figure. The joints of the components need to be wrapped with sealing tape (such as PTFE tape), and the water pipes are connected according to the diameter of the water inlet and outlet respectively. *After connecting the inlet and drain pipes, check whether the ball valve switch is in place flexibly and whether there is jamming.

• [Emergency eye washstation]: surface spraying ABS anti-corrosion coating, effective acid, alkali, salt, oil and other chemical corrosion.
• [Equipted with pedal]: more convenient operation. Push the pedal or push the hand push board, turn on the eye wash switch; turn off the hand push board, and turn off the eye wash switch.
• [Flip design]: Equipt with Stainless steel linkage overturning eye wash basin, water will be flow our once opens the cover, more easy to operated, preventing the overflowed water and dust pollution.
• [Main material]: special SS304 stainless steel, has good resistance of acid, alkali, salt and oil

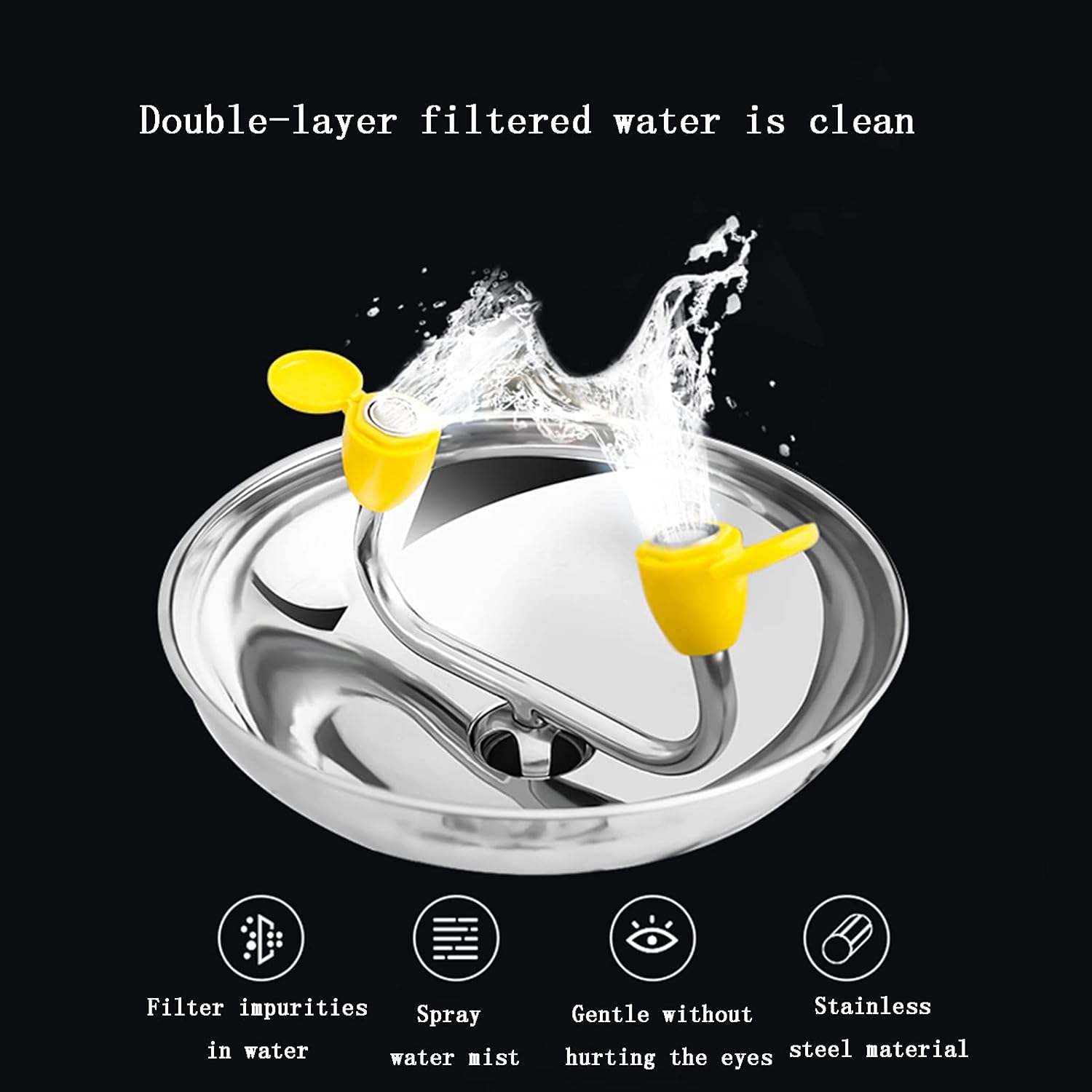

• [Eye nozzle]: eye nozzle built-in multi-layer filter, effectively filter the impurities in water, the water flow into a foamy water, effectively prevent the impurities in water, or to the injured eye due to water flow secondary damage nerve and the injured area. The filter screen is easy to remove, easy to clean and easy to maintain.
