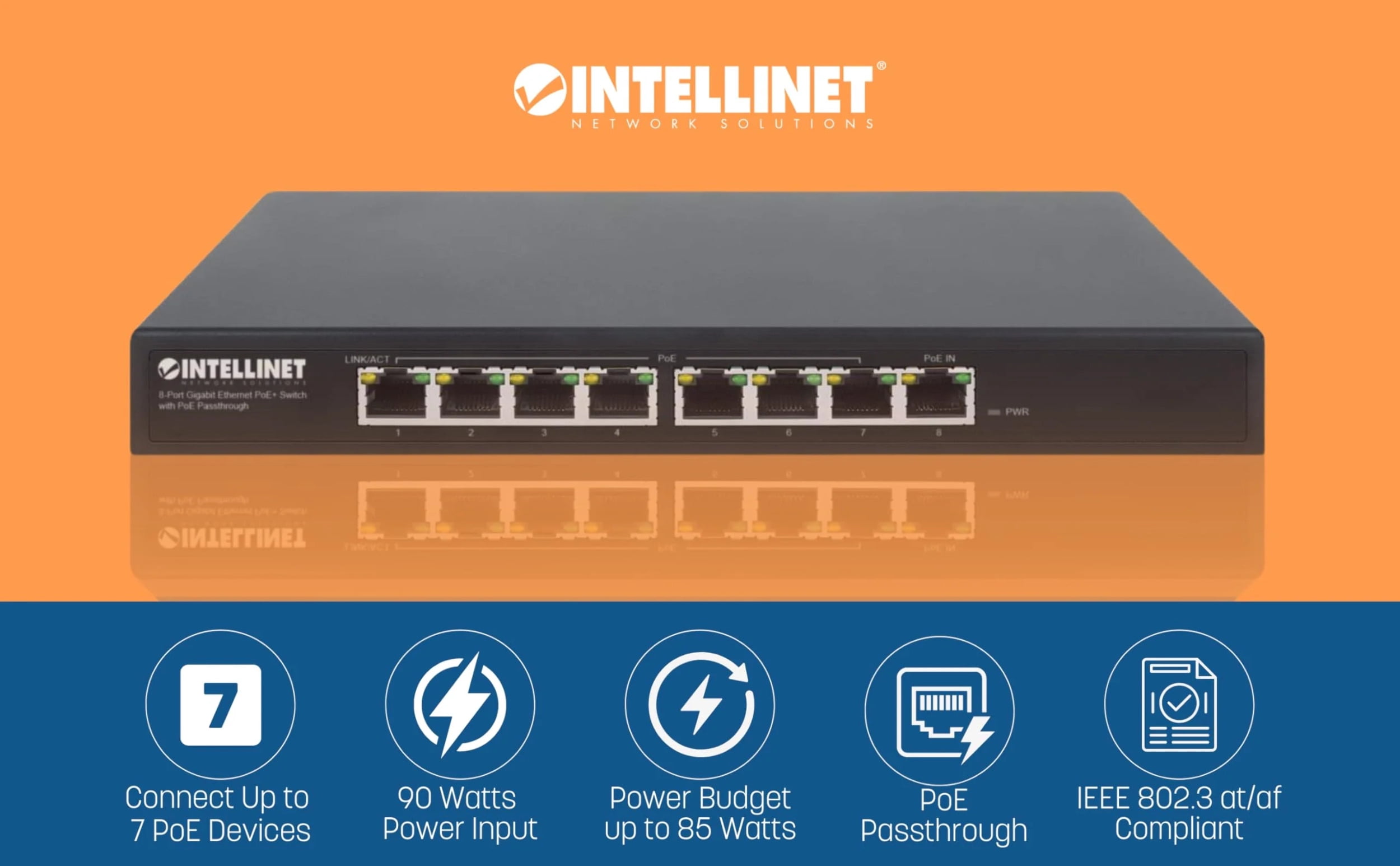

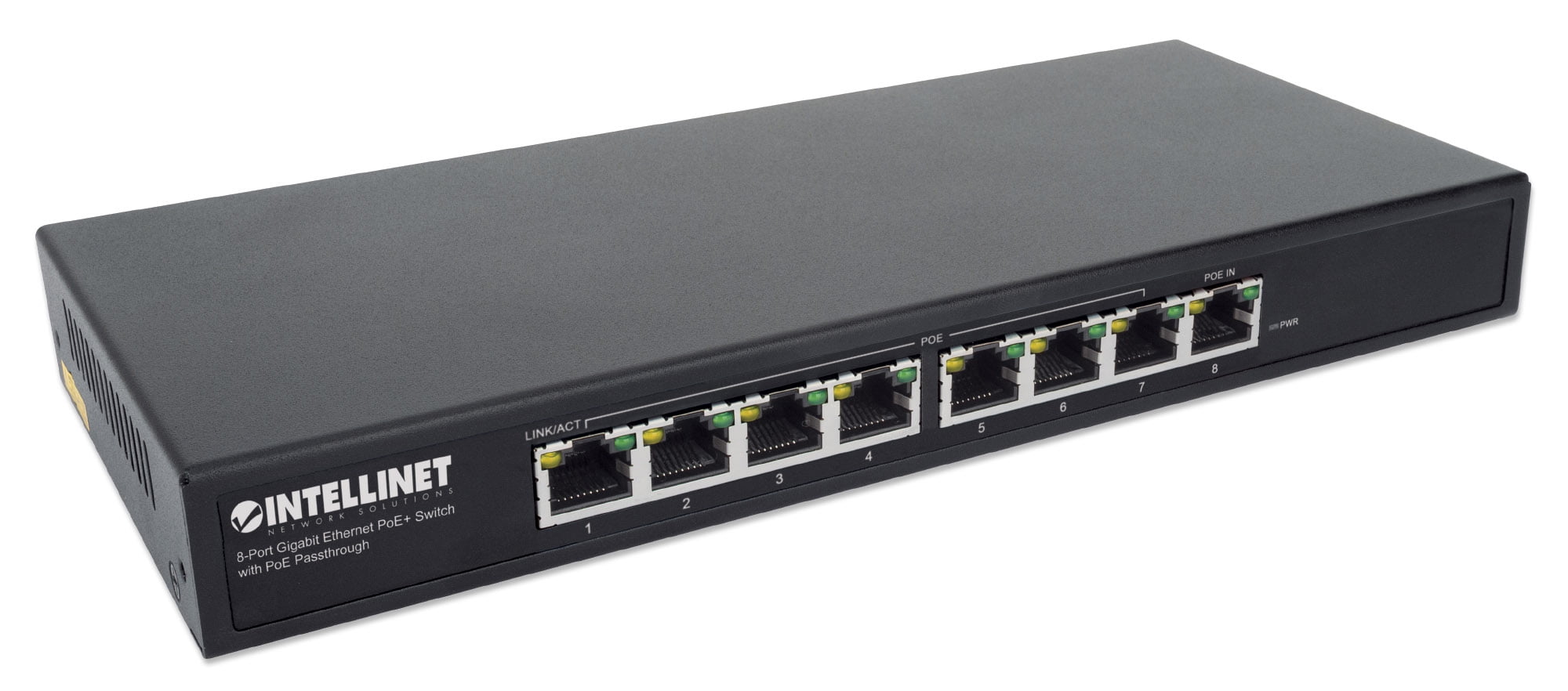

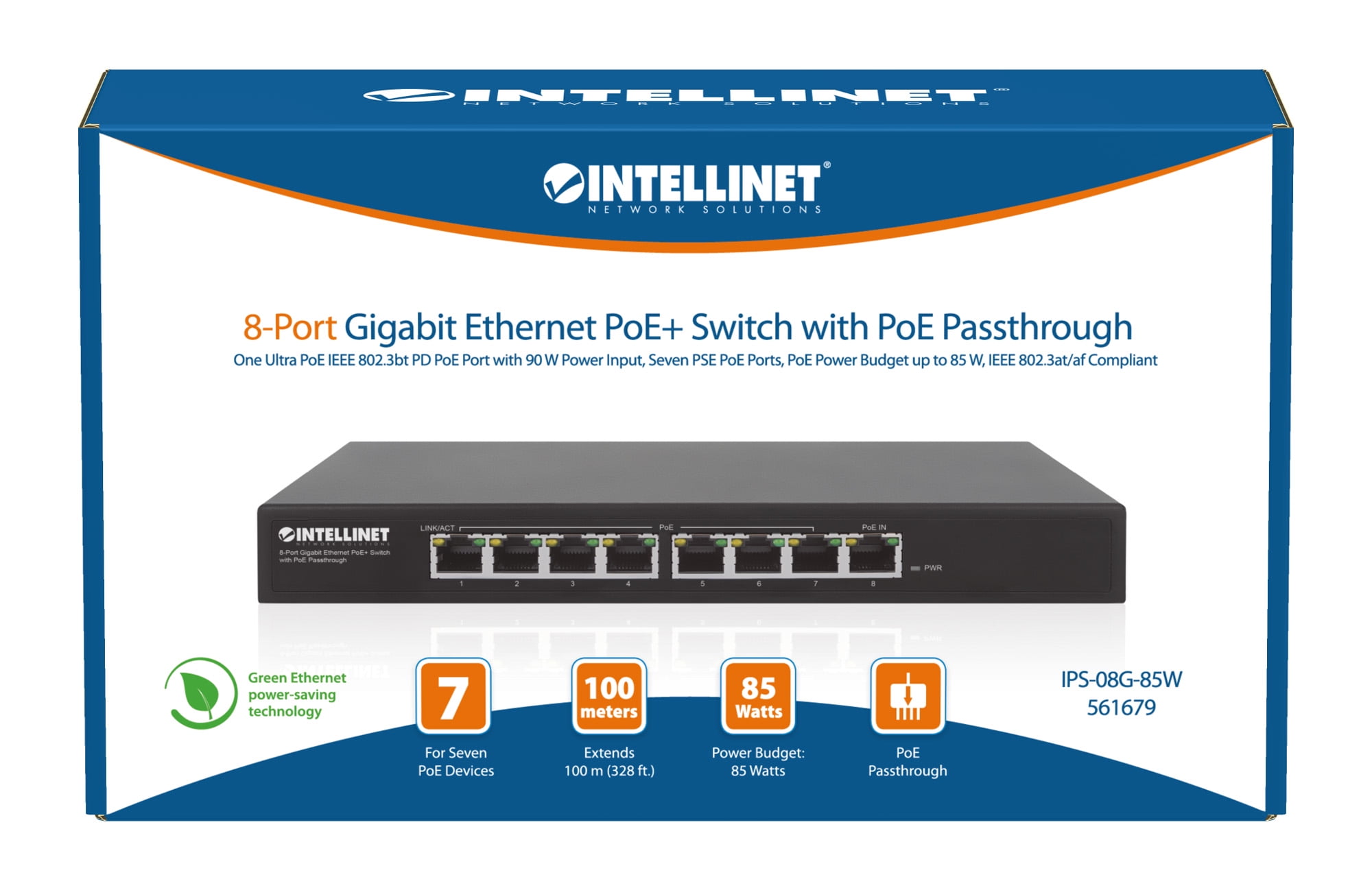

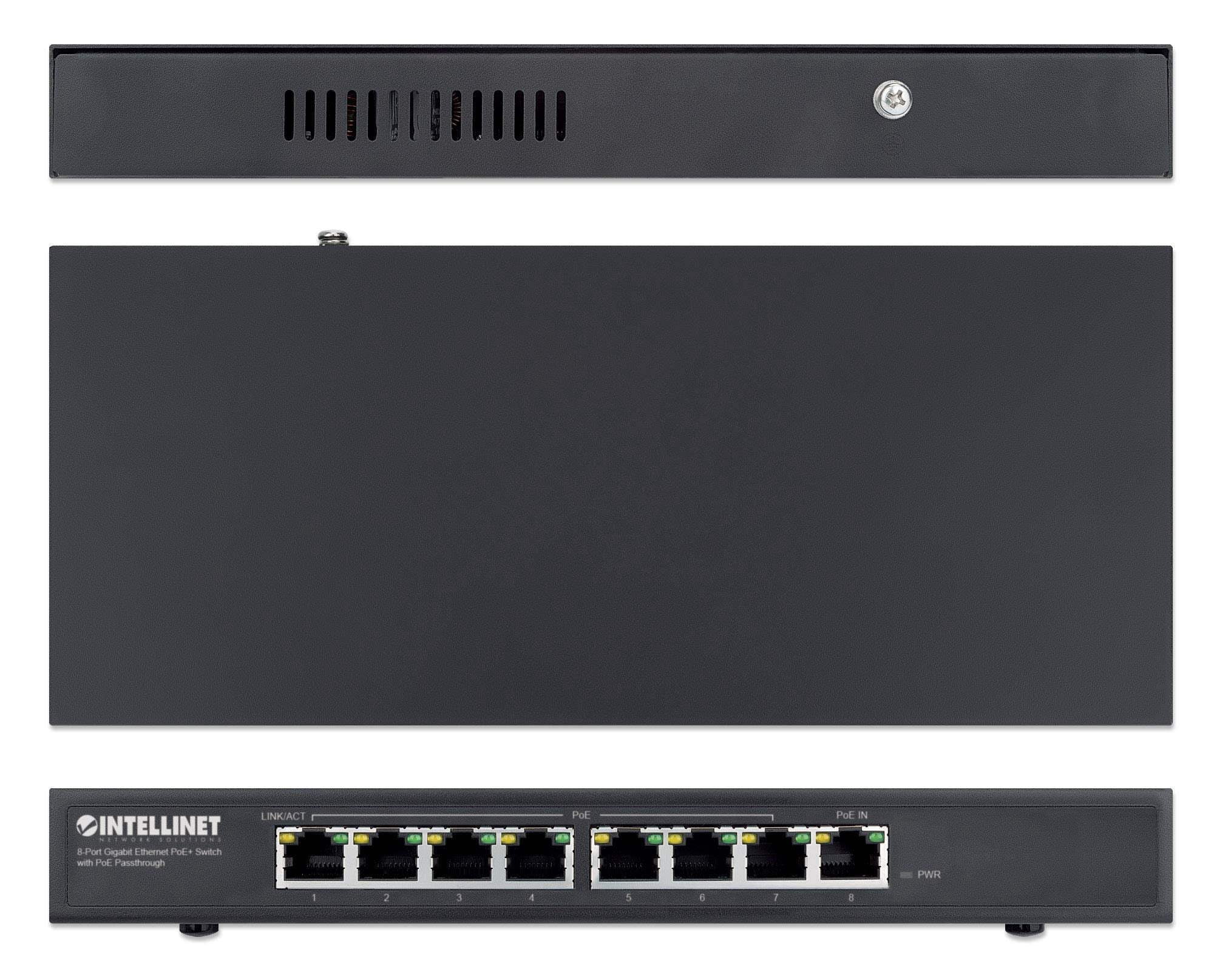

Intellinet PoE-Powered 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough | 85W, IEEE 802.3bt (PoE++ / 4PPoE), Fanless | NDAA-compliant

<h2>Revolutionize Your Network with Advanced PoE Solutions</h2> In the ever-evolving landscape of network solutions, our state-of-the-art device stands out as a paradigm of efficiency and reliability. Designed to deliver a robust and seamless experience, this device supports up to 90 watts of power input from either a PoE injector or switch, ensuring that your network devices remain powered and connected without interruption. With the capability to extend the connection distance between the PoE source and device to an impressive 200 meters, double the conventional distance, it offers unparalleled flexibility in network design. <br><br> Our device is equipped with a PoE power budget of up to 85 watts with a 90-watt input via an IEEE 802.3bt connection. It also provides a versatile power budget of 20 watts and 10 watts through IEEE 802.3at and IEEE 802.3af connections, respectively. This ensures the delivery of both power and data across existing network cables, significantly reducing installation costs. The device supports a range of PoE devices, including wireless access points, VoIP phones, and IP cameras, with power output capabilities of up to 30 watts per port. <br><br> Incorporating advanced features such as short circuit, overload, and high-voltage protection, as well as a grounding point for surge protection, this device prioritizes safety. It boasts a switch fabric of 16 Gbps and integrates Green Ethernet power-saving technology, optimizing energy use by deactivating unused ports. Its fanless design ensures silent operation, ideal for noise-sensitive environments. Backed by a three-year warranty and full NDAA compliance, this device is engineered to meet the highest standards of performance and reliability, making it the ultimate choice for modern network solutions.

• Power Capacity: Supports power input up to 90W from a PoE injector or switch, with an 85W PoE budget when powered through IEEE 802.3bt, ensuring robust power delivery to connected devices.
• Extended Connection Range: Doubles the standard PoE connection distance, supporting up to 200m, enhancing flexibility in network deployment.

• Versatile Power Output: Features IEEE 802.3at af-compliant RJ45 PoE+ ports, delivering up to 30 watts per port, suitable for various devices like IP cameras and VoIP phones.
• Advanced Protection: Includes grounding points and supports IEEE 802.3at af detection, offering protection against short circuits, overloads, and high voltage, safeguarding connected equipment.
• Intelligent Networking: Equipped with 10/100/1000 auto-sensing ports for optimal network speed detection and a 16 Gbps switch fabric, ensuring efficient data transfer.
• Energy Efficiency: Integrates Green Ethernet technology that deactivates unused ports and adjusts power based on cable length, reducing energy consumption.
• User-Friendly Design: Fanless operation for silent environments, LED indicators for power and activity status, and Auto-MDIX support for hassle-free installation, backed by a three-year warranty.
• Standards
  • IEEE 802.3i (10Base-T Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3ab (Twisted-pair Gigabit Ethernet)
  • IEEE 802.3af (Power over Ethernet 802.3at Type 1)
  • IEEE 802.3at (Power over Ethernet 802.3at Type 2)
  • IEEE 802.3bt (Ultra PoE++/4PPoE Power over Ethernet)
  • IEEE 802.3az (Energy Efficient Ethernet [EEE])
  • IEEE 802.3x (flow control for full-duplex mode)
• Pinout RJ45 input port
  - Pin 1: DC (-)
  - Pin 2: DC (-)
  - Pin 3: DC (+)
  - Pin 4: DC (+)
  - Pin 5: DC (+)
  - Pin 6: DC (+)
  - Pin 7: DC (-)
  - Pin 8: DC (-)
• Pinout RJ45 output ports
  - Pin 1: DC (-)
  - Pin 2: DC (-)
  - Pin 3: DC (+)
  - Pin 6: DC (+)
• Power
  • Via PD port (port 8)
  - Input: IEEE802.3af/at/bt compliant
  - PoE Budget: 85 watts (maximum)
  - Input: 48 - 57 V DC; up to 90 watts
  - Output: 44 - 57 V DC; up to 30 watts per port
• Environmental
  • Metal housing
  • Dimensions: 104 x 240 x 29 mm (4.09 x 9.45 x 1.14 in.)
  • Weight: 660 g (1.46 lbs.)
  • Operating temperature: 0 - 40℃ (32 - 104°F)
  • Storage temperature: -20 - 70°C (-4 - 158°F)
  • Operating humidity: 10 - 90% RH, non-condensing
  • Storage humidity: 5 - 95% RH, non-condensing
