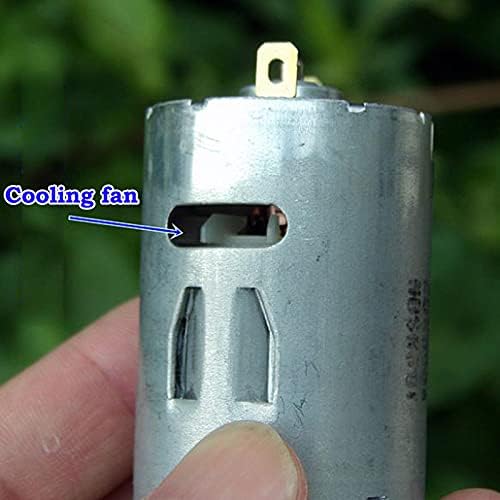

JOHNSON Electric Tool Motor Micro RS-545 Motor DC 12V-18V 23800RPM High Speed Large Torque with Cooling Fan Ball Bearing

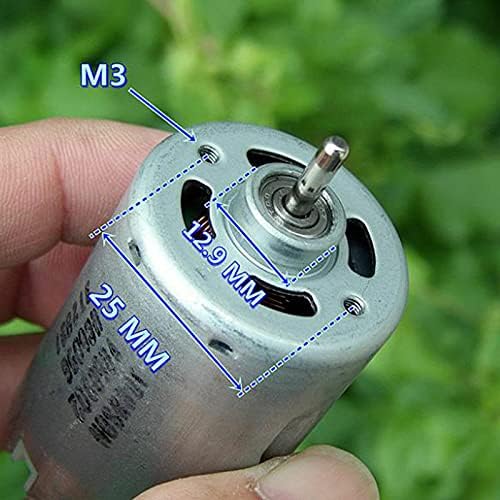

Specifications:1.Brand: JOHNSON MOTOR2.Model: RS-545 Motor3.Motor diameter: 35.8mm4.Motor height: 50mm5.Output shaft diameter: 3.15mm6.Output shaft length: 15mm7.Voltage range: DC 6V-18V8.Rated voltage: DC 12V-18V9.Test data: Voltage:6V No-load current:0.50A Speed:7600RPM Voltage:9V No-load current:0.55A Speed:11600RPM Voltage:12V No-load current:0.62A Speed:15500RPM Voltage:14.4V No-load current:0.68A Speed:19500RPM Voltage:18V No-load current:0.80A Speed:23800RPM10.Motor weight: 166g11.Tips: These motors are high-speed, high-power 540 motors, torque is strong, need large current support, is generally using high-power batteries, if you want to use DC regulated power supply, then the power supply at least 8 A more current, if the current is too small, then the power and torque of the motor can not play out.Package includes:Motor x 1pcItem specifics:Torque: not clearUsage: Home Appliance,OtherModel number: RS-545 MotorOutput power: not clearContinuous current(a): not clearProtect feature: Totally EnclosedCommutation: BrushConstruction: Permanent MagnetEfficiency: IE 2Type: Micro MotorCertification: CCC,ceOrigin: Mainland ChinaWorking voltage: 6V-18VBase rpm:: 15500RPM(@12V)Shaft diameter:: 3.15MMShaft type:: Straight

• Package Includes: Motor x 1pc
• Torque: not clear
• Usage: Home Appliance,Other
• Model number: RS-545 Motor
• Output power: not clear
