Maxitrol RV48L Natural Gas Pressure Regulator, 3/4" NPT Thread, 15/16" In and Out Opening, 1/2 PSIG In, 3"- 6" WC Out, CSA Certified, for Awoco Gas Ranges
4.3 (95 items)
Limited Time Sale$26.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221429413 | Release Date | 2026/05/03 | List Price | $17.60 | Model Number | 221429413 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

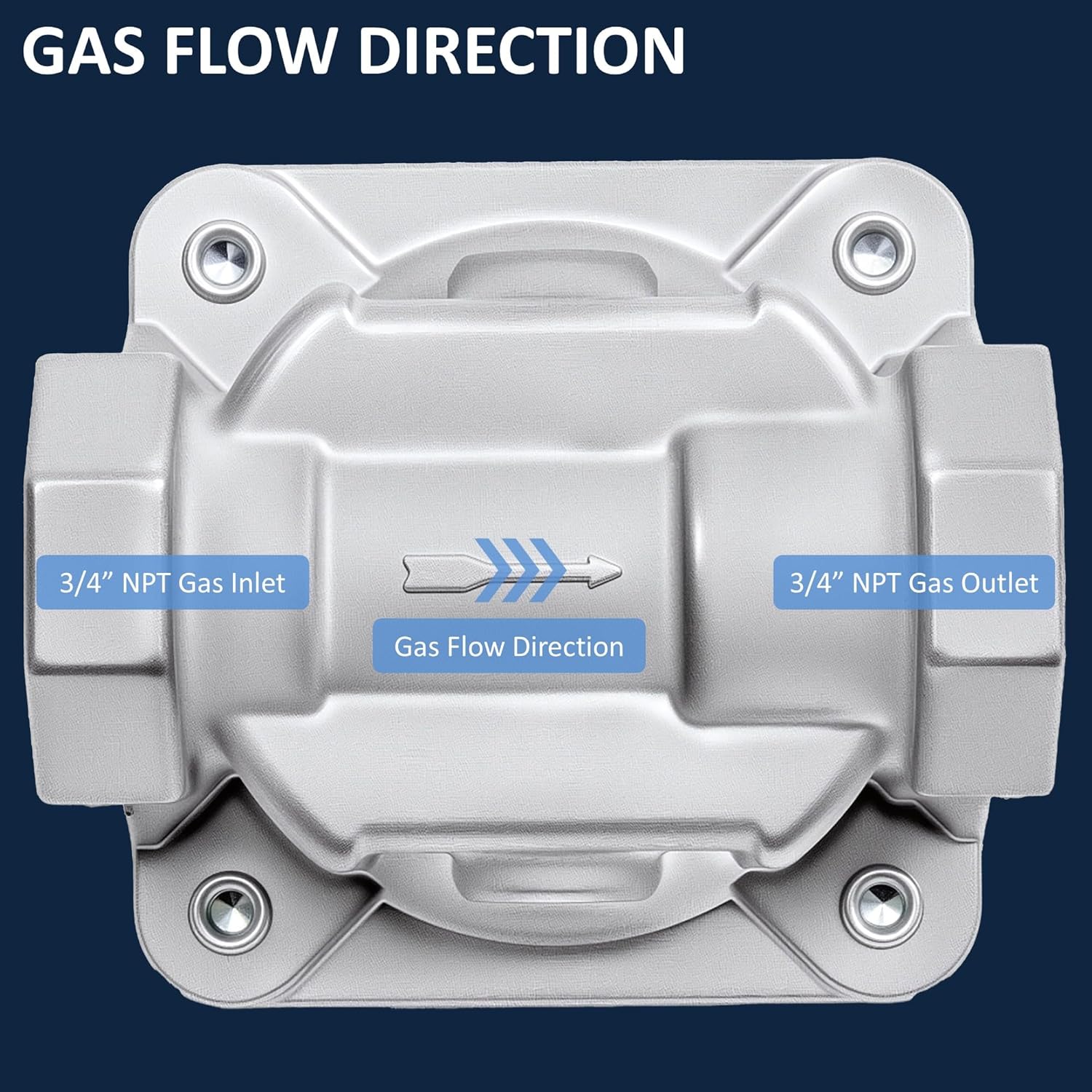

- Installation - Simply install the regulator in the correct orientation, ensuring the gas flow follows the direction indicated by the arrow on the bottom of the regulator. For a secure and leak-free connection, use gas-rated pipe thread seal tape during installation. Fittings: 3/4" NPT inlet x 3/4" NPT outlet.
- Premium Quality - This gas pressure regulator is constructed from high-quality, heavy-duty metal materials to ensure exceptional durability and long-lasting performance. Engineered for strength and reliability, it provides enhanced protection against wear, corrosion, and leakage, delivering safe and stable gas flow for your equipment.
- Notes - When applied to LP gas, it needs to work with an external pressure reducer (NOT supplied). Install the external pressure reducer between the propane supply source and this regulator to lower the pressure to 1/2 PSIG. Do not install the regulator too close to the heating equipment or use it in a very cold environment. Heat or cold can change the resistance of the spring inside the regulator.

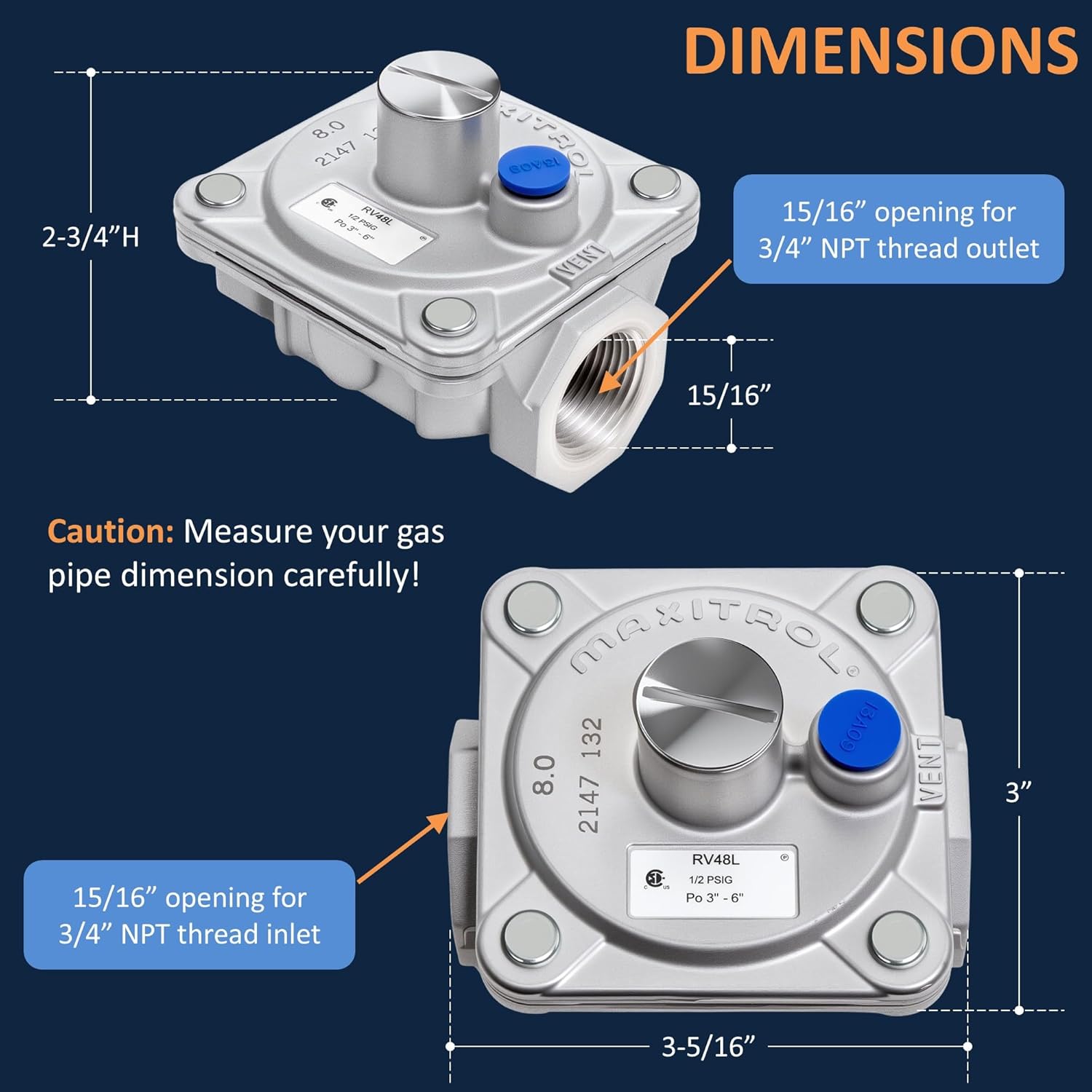

- Caution - Please verify both your pipe size and the regulator’s connection size before purchasing. Keep in mind that thread size refers to the fitting, not the actual opening diameter. This regulator is designed for Natural Gas (NG) ONLY and is NOT compatible with Liquid Propane (LP) systems.

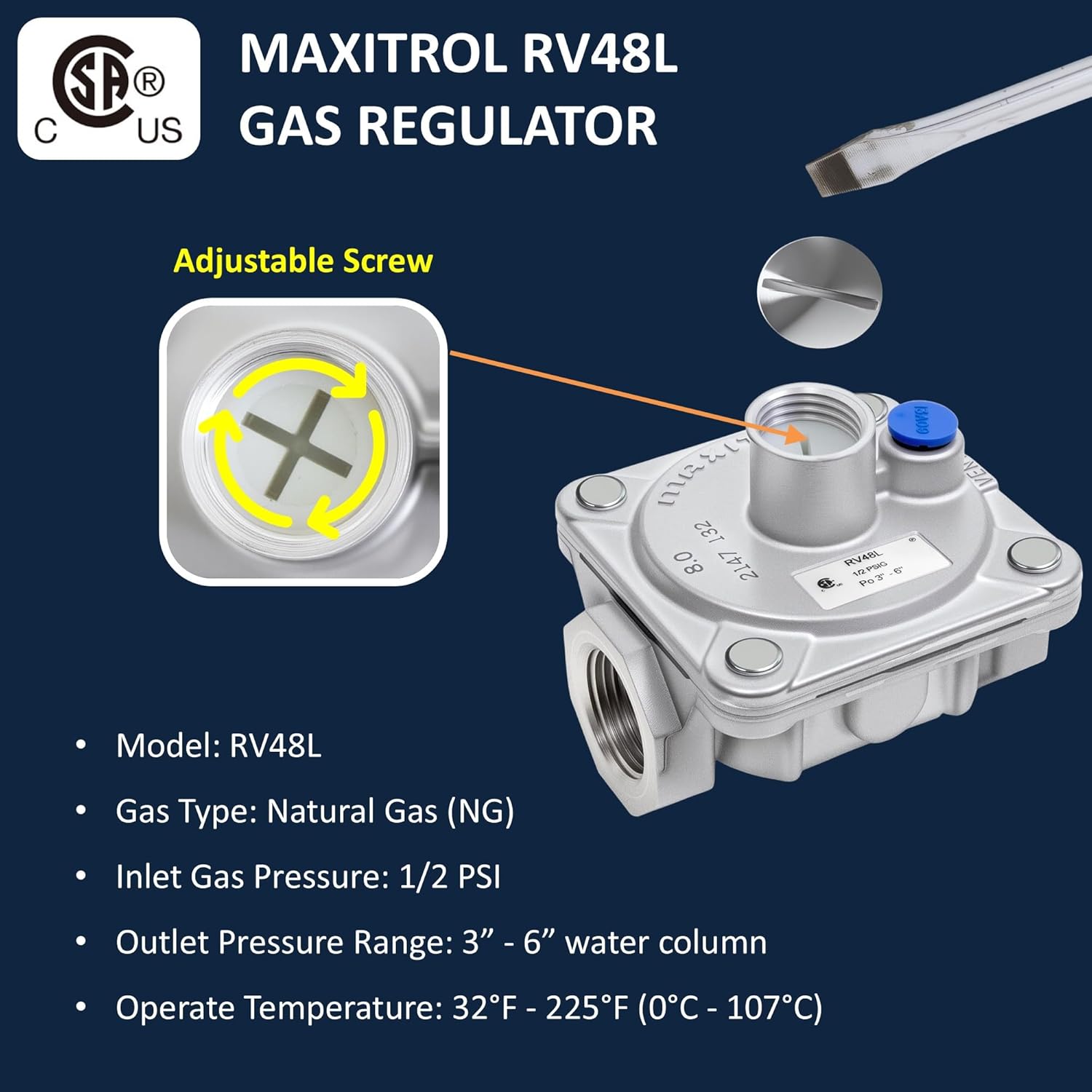

- Specifications - Model: RV48L. Gas type: Natural Gas (NG). Inlet gas pressure: 1/2 PSI. Outlet pressure range: 3" - 6" water column. Operate temperature: 32°F - 225°F (0°C - 107°C). CSA certified.
| UPC | 792277538972 |
|---|---|
| Size | RV48L 3/4" NG |
| Brand Name | Awoco |
| Unit Count | 1.0 Count |
| Valve Type | Pressure Regulator |
| Thread Size | 3/4" NPT |
| Thread Type | NPT |
| Manufacturer | MAXITROL |
| Model Number | MXT-52-1011 |
| Material Type | Metal |
| Connector Type | Threaded |
| Exterior Finish | Metal |
| Number of Ports | 2 |
| Maximum Pressure | 6 Inches of Mercury |
| Specification Met | CSA |
| Outlet Connection Size | 0.75 Inches |
| Outlet Connection Type | NPT |
