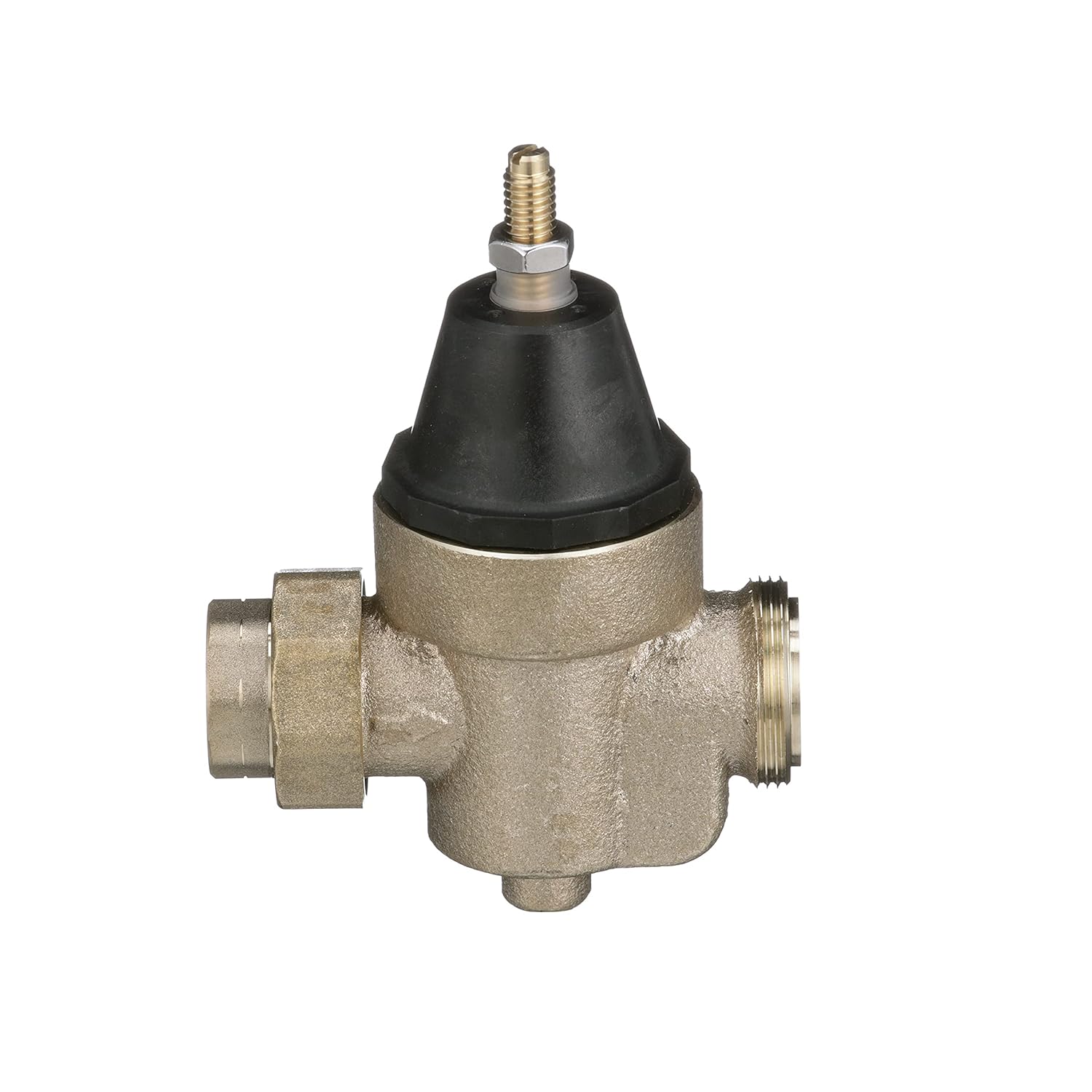

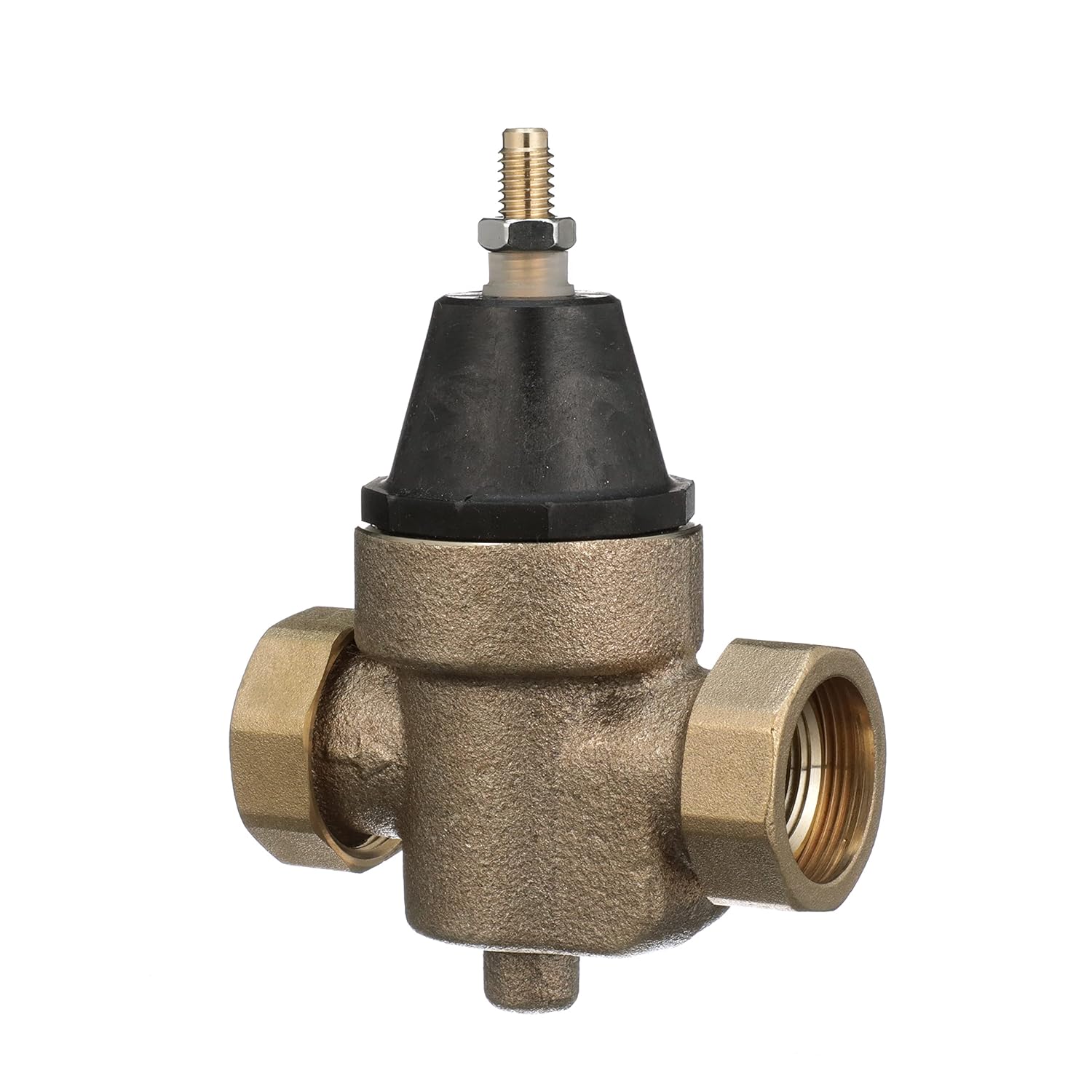

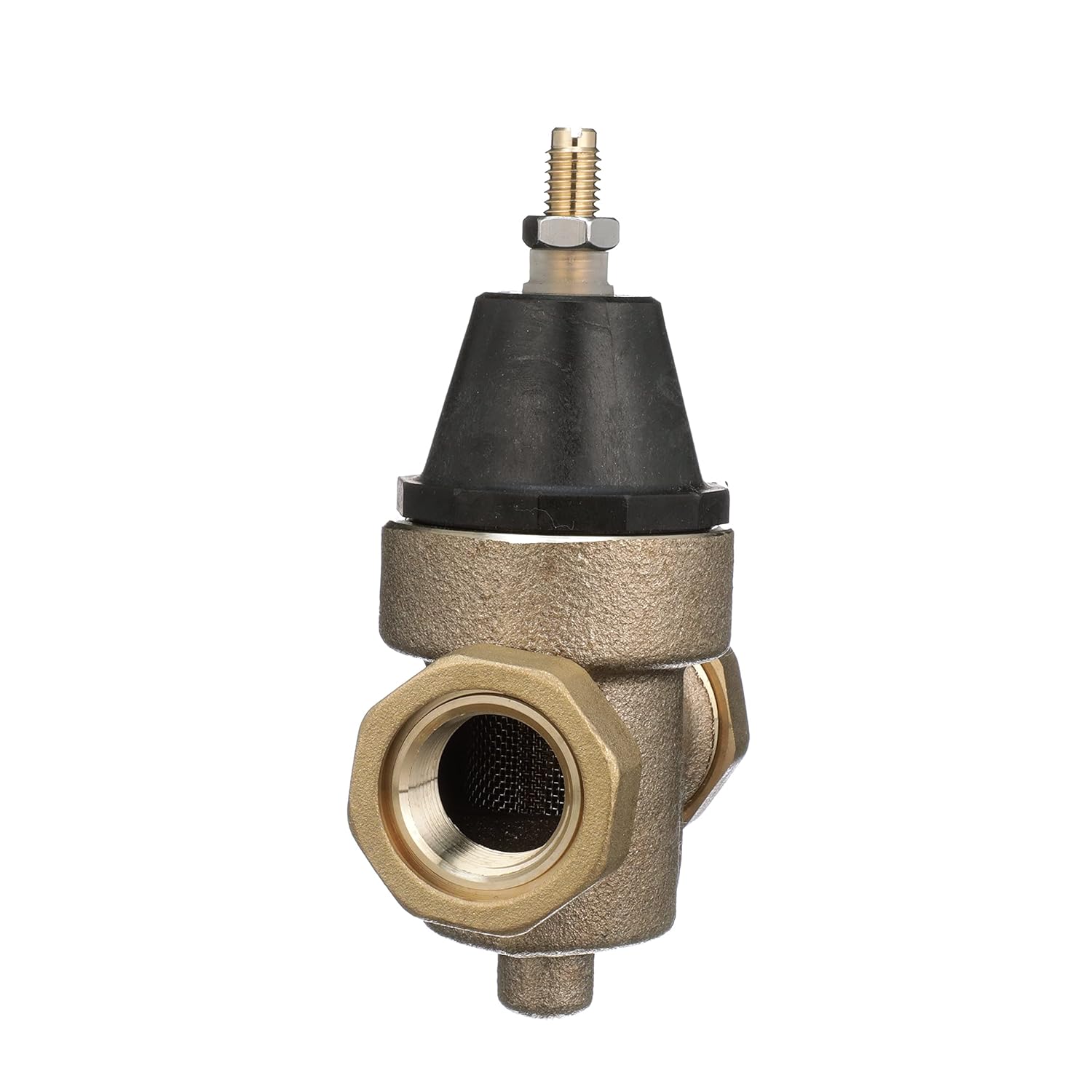

Watts LFN45B Series 3/4" Lead-Free Cast Copper Silicon Alloy Water Pressure Reducing Valve, Double Union PEX End Connections, Elastomer Disc, Adjustable Pressure 25 to 75 psi, Maximum 400 psi

The Watts 3/4" Lead-Free Water Pressure Reducing Valve is engineered to safeguard plumbing systems and lower water consumption in commercial, industrial, and residential settings. This valve is a comprehensive solution designed to handle pressures up to 400 psi (27.6 bar) and offers an adjustable pressure range from 25 to 75 psi (172 to 517 kPa), with a standard setting at 50 psi (345 kPa).This assembly includes a lead-free cast copper silicon alloy valve, removable integral stainless steel strainer, replaceable seat module, thermal expansion bypass, and a sealed spring case with stainless steel cage screws for waterwork pit installations.The valve includes a sealed spring cage that makes it suitable for waterworks pit installations, as well as a bypass feature that effectively controls thermal expansion pressure, permitting the flow of water back through the valve into the main when pressures - due to thermal expansion on the outlet side of the valve - exceed the pressure in the main supply.Featuring double union PEX end connections (PEX x PEX inlet and outlet), this lead-free water pressure reducing valve is designed for straightforward installation with easy handling, allowing for a secure and reliable fit. Its compact construction ensures it can be easily handled during installation, and its in-line serviceability feature allows for quick maintenance without removing the valve from the pipeline, ensuring minimal downtime and keeping the system running efficiently.

• LEAD-FREE WATER PRESSURE REDUCTION: The Watts 3/4" Lead-Free Water Pressure Reducing Valve reduces incoming water pressure to protect plumbing systems and reduce water consumption in commercial, industrial, and residential applications. This assembly includes a removable integral stainless steel strainer, thermoplastic seat module, thermal expansion bypass, and a sealed spring case with stainless steel cage screws for waterwork pit installations.
• EASY INSTALLATION AND MAINTENANCE: Featuring double union PEX end connections (inlet and outlet), this lead-free water pressure reducing valve is designed for straightforward installation with easy handling and in-line serviceability.
• THERMAL EXPANSION PROTECTION: The valve includes a bypass feature that effectively controls thermal expansion pressure, permitting the flow of water back through the valve into the main when pressures - due to thermal expansion on the outlet side of the valve - exceed the pressure in the main supply.
• VERSATILE PRESSURE ADJUSTMENT: This valve is suitable for pressures up to 400 psi (27.6 bar) and allows for an adjustable pressure range between 25 to 75 psi (172 to 517 kPa), with a standard setting at 50 psi (345 kPa).
